HamiltonBuhl ADA Compliant Assistive Listening System (ALS700)
- SKU:
- ALS700
HamiltonBuhl® ADA-Compliant Assistive Listening System (ALS700)
Most of us take hearing for granted. Sound, such as speech, occurs somewhere in the environment around us, and we, quite simply, "hear” it. And, It is well-recognized that hearing is critical to speech and language development, communication, learning and social interactions.
Breakdown learning, communication and social barriers with the HamiltonBuhl® ALS700 Assistive Listening System. Separate the sound that your audience wants to hear from the background noise, and deliver it at the right amplification level, directly into the individual’s ear.
Individuals utilizing the ALS700 receivers will easily achieve the required volume increase and gain the same level of understanding without making it too loud for everyone else.
A single ALS700 System transmitter can serve an unlimited number of receivers in a 150 foot range! Fully ADA compliant, the ALS700 is the ideal assistive listening system for any environment: school, movie theater, house of worship, performance theater and more.

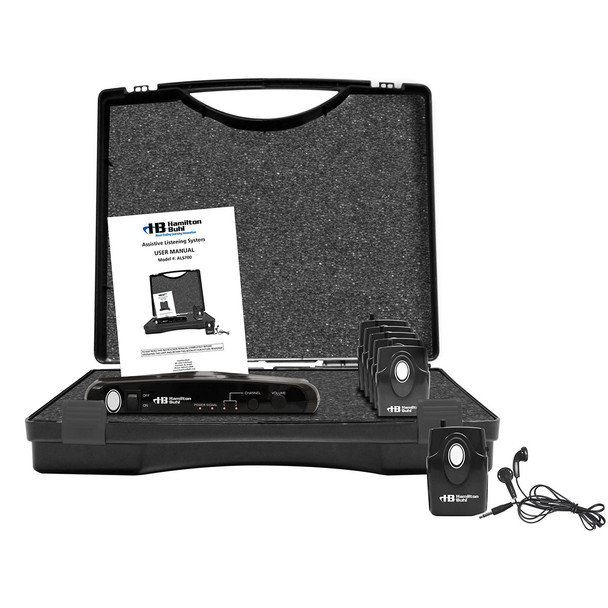

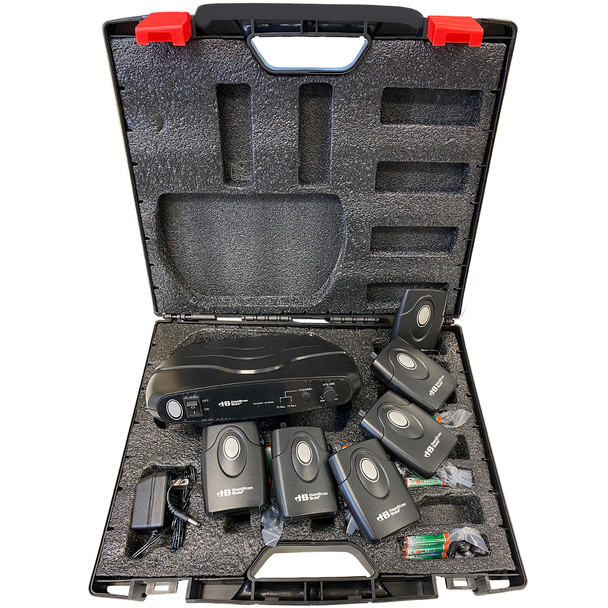

Each ALS700 System includes:
(1) Transmitter
(6) Receivers
(6) Earbuds (ALSH700 on-ear headphones available for purchase)

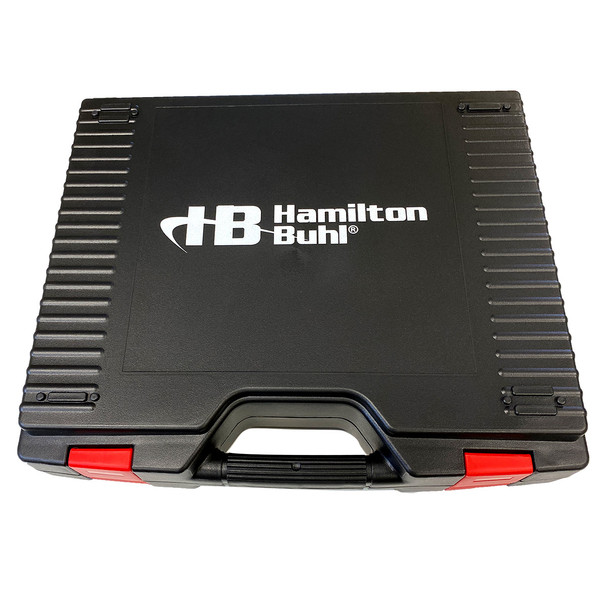

(1) Carry case
Note: Do not interchange with ALS600 AC Power Adapter
HamiltonBuhl ALS700 Assistive Listening System Instruction Manual
Specifications
Overall System Performance:
Frequency Response | 100Hz - 8KHz |
Signal to Noise Ratio | 41dB |
Total Harmonic Distortion | <0.5% |
RF Carrier Frequencies | Channel 1: 75.5 MHz Channel 2: 75.9 MHz |
Frequency Stability | >0.005% |
Modulation | FM ± 75 KHz max. |
Operating Range | Up to 150 feet line of sight |
Transmitter:
Mic Input | Connector: 1/4" Phone jack Impedance: Unbalanced |
Line Input | Connector: 1/4" Phone jack Impedance: 100K unbalanced |
Antenna | Permanently mounted, telescoping |
Power Output | 13dBm |
Power Requirements | 5V DC, regulated @ 200mA Adapter included Note: Do not interchange with ALS600 AC Power Adapter |
Dimensions | 9" x 6.07 x 1.97" |
Receiver:
Audio Output | 100mW |
Connectors | 3.5mm jack for earphone output |
Earphones | Mono earbuds |
Antenna | Integral with earphone cord |
Sensitivity | 3uV for 12dB with squelch defeated Squelches at 10uV for min. 50dB S/N ratio |
Mute Threshold | 5 - 8uV |
Power Requirements | Three (3) 1.5V AAA size batteries |
Dimensions | 2.54" x 1,32" x 3.92" |
Product | Shipping | Master Pack | |
---|---|---|---|
Weight | lbs. | lbs. | lbs. QTY: |
Dimensions | 19.8x32x2.5 | 26x38x8 | 25.32x7.6x38 |
Warranty | 1 Year |
Product | Shipping | Master Pack | |
---|---|---|---|
Weight | 6.2 lbs. | 7.2 lbs. | 32.7 lbs.; Qty: 5 |
Dimensions | 15.96 x 13.94 x 3.31 | 18.06 x 14 x 4.5 | 20.63 x 16.44 x 12.75 |
Warranty | 1 Year |
